The Modbus message uses the register address.įor example, the first register of AO Holding Register has the number 40001, but its address is 0000. Two tables are read-only and two are read-write. SlaveID is the address of the device, it can take a value from 0 to 247, addresses from 248 to 255 are reserved.ĭata in the module is stored in 4 tables. If you discard the SlaveID address and the CRC checksum, you get the PDU, Protocol Data Unit.
MODBUS RTU MESSAGE FORMAT CODE

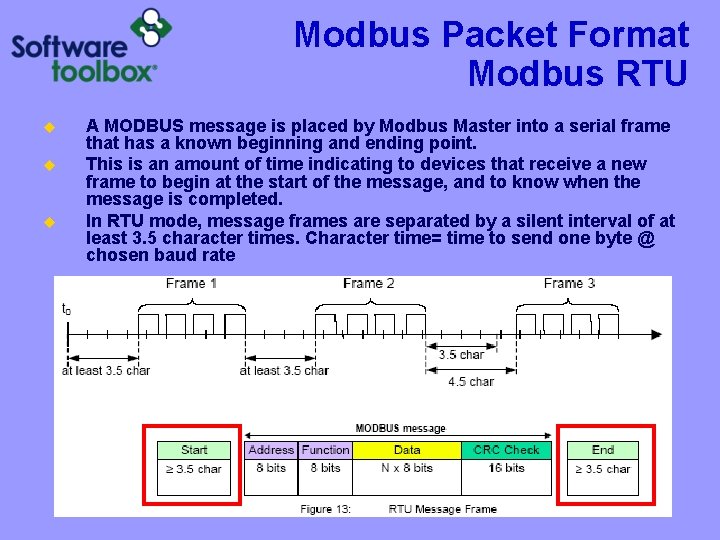

The Modbus RTU message consists of the address of the SlaveID device, the function code, the special data, depending on the function code and the CRC of the checksum. It uses RS-485, RS-422, RS-232 interfaces, as well as Ethernet TCP / IP networks (Modbus TCP protocol) for data transfer. Modbus -communication protocol is based on the master-slave architecture.
What are the errors of the Modbus request?.How can I send a Modbus RTU command to record multiple analog outputs? Command 0x10.How can I send a Modbus RTU command to write multiple discrete pins? Command 0x0F.How can I send a Modbus RTU command to record analog output? Command 0x06.How can I send a Modbus RTU command to write discrete output? Command 0x05.How can I send the Modbus RTU command to read the analog input? Command 0x04.How can I send a Modbus RTU command to read analog output? Command 0x03.How can I send a Modbus RTU command to read a digital input? Command 0x02.How can I send a Modbus RTU command to read discrete output? Command 0x01.Detailed description of the Modbus TCP protocol with command examples
